TACHOGRAPH DOWNLOADING DATA -
OWNER DRIVERS |
 |
|
|
DLK Pro Download Key
Efficient, simple and user-friendly data handling
|
|
|
|
|
|
|
For fleets, workshops and authorities, the
DLK Pro Download Key by VDO is the ideal medium for downloading and archiving mass memory data from digital tachographs and data from driver cards.
Digital tachograph data is downloaded via the serial 6-PIN interface, which is compatible with all digital tachographs. The integrated chip card reader enables data to be downloaded straight from the driver card. Before initial operation, the chip card reader is activated with a licence card. Alternatively, the driver card can be downloaded via the 6-pin interface. The high-speed USB interface then transfers the data quickly and securely to the computer.
Data security is also of primary importance in the DLK Pro Download Key – thanks to the integrated SD card, you can create an external backup copy at any time.
DLK Pro Download Key benefits:
User-friendly: light, handy, compact, simple operation
Fulfilment of the legal download obligation for fleet operators and workshops
Fulfilment of the legal archiving obligation for vehicle fleets
Downloading of mass memory and driver card data to all digital tachographs (compatible with 12V and 24V devices)
Optional data download straight from the driver card via the integrated chip card reader
Handy 2.2" TFT touch screen for displaying the last downloads, the download status, the charge level of the rechargeable battery and the currently available memory capacity
Additional LED for displaying the download status, plus an acoustic signal when the download is complete
Reminder for due downloads
User-configurable start screen
No external power supply required for digital tachograph data downloads and evaluation at the PC
Memory for around 6,000 quarterly downloads
Fast data transport from the digital tachograph to the PC thanks to the high-speed USB interface
Can also be used as a "normal" USB stick (2 GB memory capacity)
29 languages available
|
| |
Downloadkey II
Suitable for small fleets and owner-drivers.
|
|
|
Today, flexibility is one of the key aspects in the business world. With VDO portable download solutions fleet managers and drivers have the maximum flexibility with the ability to download digital tachograph data from around the world at any time.
The VDO Downloadkey II is the ideal tool for downloading data for fleets, workshops and Authority - downloads and transfers data from mass memory.
|
|
|
|
|
|
The VDO Downloadkey II DLKis a convenient and practical transport medium for downloading and archiving mass memory and driver card data. With the Downloadkey II
DLK, driver card data can be downloaded from driver cards inserted in
tachographs.
It features a 6-pin serial interface, which is compatible with all digital
tachographs, and a USB 2.0 high speed interface for transferring data quickly to a PC. The Download Key II requires no separate power supply so it is always ready for use in vehicles and with
PCs.
To protect data from unauthorised
access, a company card is required for data download.
Main features:
The serial 6-pin interface of the Downloadkey II DLK is compatible with all digital tachographs and enables data downloading via the front interface of the
tachograph.
The USB 2.0 interface of the Downloadkey II DLK enables fast data transfer to the office computer
The Downloadkey II DLK weighs less than 50 g
The Downloadkey II DLK requires neither a power supply nor a buffer battery to retain its data
An optical display indicates the memory capacity and download status of the Downloadkey II DLK
The memory capacity of the Downloadkey II DLK is sufficient for approx. 1,000 quarterly downloads
Benefits:
Easy handling: compact and light, simple to use
Meets download requirements for fleets and workshops
Meets archiving requirements for fleets and workshops
Transfer data from digital tachographs to PC
Download mass memory and driver card data via the front interface on digital tachographs
New optical display indicates memory capacity and download status for maximum comfort and ease of handling
Compatible with the Downloadterminal
|
|
|
Mobile card reader
Ideal for "novice"
|
|
|
|
|
|
The VDO Mobile Card Reader is - in conjunction with the Downloadkey II and the TIS-Compact III Key - the ideal device for drivers on the road to download digital driver card data. And the Mobile Card Reader does not require user authentication via a company card.
The Mobile Card Reader lets fleet managers access driver card data at any time and download information in accordance with legal requirements, without issuing company cards to the drivers. The Mobile Card Reader is also compatible with the Downloadkey II and TIS-Compact II Key solutions.
The Mobile Card Reader excels above all due to its secure, user-friendly operation. The data transfer from the Mobile Card Reader starts automatically once the driver card and one of the keys areinserted into the device.
The Mobile Card Reader is operated via a serial 6-pin interface with the Downloadkey II or the TIS-Compact III Key. The Mobile Card Reader is thereby ready to use at anytime, because, besides obtaining power through a power cord,the device can also be operated using four batteries (supplied).
Main features:
Direct driver card download without company card
Mobile use possible via usage of batteries
LEDs for displaying memory capacity, download status and battery charge
Benefits:
Simple handling, user-friendly and practical
Designed for mobile use
Direct driver card download without company card
Can be used in conjunction with Downloadkey II and TIS-Compact IIIKey
Driver card download outside of the tachograph
|
|
|

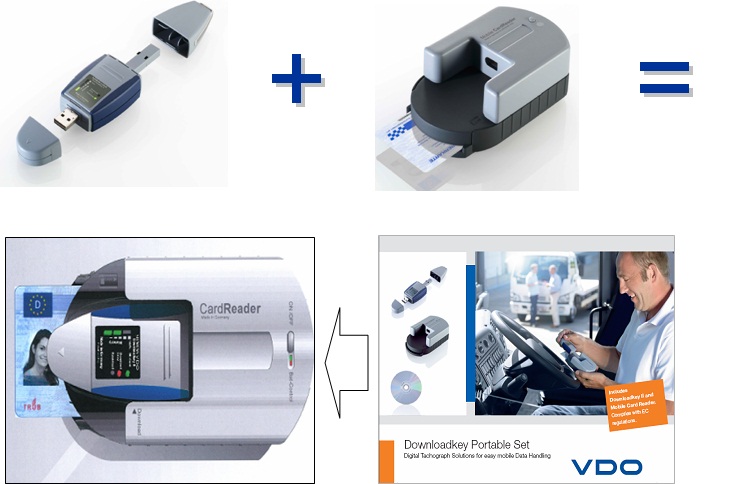

Downloadkey II Portable Set
Ideal for "novice"
|
|
|
The Downloadkey II Portable Set is composed by Downloadkey II and Mobile card reader.
This set allows you to download data from driver cards and is not required to use the company card.
|
|
|
|
|
|
Benefits:
Sistema per scaricare le carte conducenti e archiviare i dati
Gestione semplice; rispetta gli obblighi di Legge per lo Data download
Scarico dati dalla memoria di massa e dalle carte conducente.
Scarico carte conducente senza carta azienda
La batteria e il funzionamento della rete per uso in movimento e stazionario
Tempo di download della carta conducente ottimizzato
256 MB di capacità di stoccaggio
|
|
|
|
|
|
|
|
