PRODUCTS CATEGORIES |
 |
|
|
| |
|
|
|
|
|
DIGITAL TACHOGRAPHS |
|
|
|
|
|
|
|
New

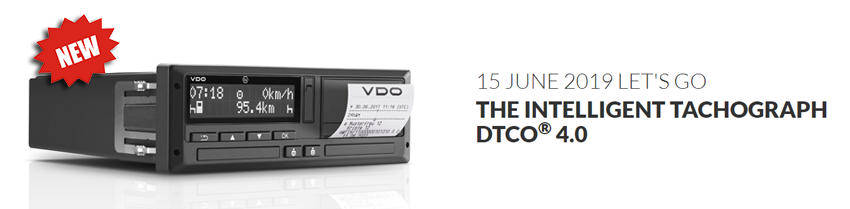

digital tachograph DTCO
4.0
Fit for the future – safe, practical and precise
|
|
|
|
NEW EU REGULATION COMING
From June 15, 2019, newly registered or newly equipped vehicles over 3.5 metric tons that are used for commercial
purposes must be fitted with a new-generation digital tachograph. The purpose of the new EU regulation 165/2014 is to further improve road safety, guarantee competition on the European domestic market and prevent the manipulation of digital tachographs.
DSRC INTERFACE WITH PRACTICAL ANTENNA
It must be possible for supervisory authorities to request encrypted items of information on the truck in operation as defined by the EU by means of a DSRC (dedicated short range communication) antenna. However, driver-related data such as driving and rest periods is not transmitted. If irregularities occur, vehicles can be stopped for an in-depth inspection.
The DTCO 4.0 features an innovative DSRC antenna installed on the windshield. Its function has been integrated in the tachograph. Unlike standard solutions on the market, no changes to the vehicle’s electrical or electronic systems are necessary here.
POSITION DATA VIA GNSS CONNECTION
The DTCO 4.0 has a highly sensitive integrated GNSS modul with access to satellite systems such as Galileo, GPS and GLONASS.
By means of satellite-assisted position finding, the location is recorded at the start and end of the day's working hours as well as after three hours of active driving time
ITS DATA FOR FLEET MANAGEMENT SYSTEMS
More than 70 different additional data records can be transferred to fleet management systems such as VDO TIS-Web or VDO FleetVisor by means of the standardized ITS (intelligent transportation system) interface. Whether drivers have given their consent for their personal data to be passed on is also indicated in advance. This ensures transparency – not just for the inspection but also for data protection.
NEW KITAS 4.0 MOTION SENSOR
VDO has developed the new KITAS 4.0 motion sensor for communication between the speed sensor and the digital tachograph.
Together with the DTCO 4.0, it constitutes a system unit and meets the very strict legal regulations thanks to the new encryption system. In addition, registering the system unit with the VDO WorkshopTab 4.0 is very easy thanks to the QR code.
|
|
|
|
|
|
|
Digital tachograph DTCO
3.0
Faster, brighter and more flexible
|
|
|
|
|
|
DTCO 3.0 has been developed for the new market requirements of the European Union. Thanks to its new architecture and an optimized design, the DTCO is now even more powerful and less energy consuming.
The DTCO 3.0 consumes less power than its predecessor.
The revamped design makes it even easier to operate. For example, direct sunlight is no challenge for the new negative display.
Drivers profit from faster processing when a two-man crew is in the vehicle and mobile devices can be used to record additional manual entries.
Now drivers and fleet managers alike can communicate with the tachograph: The new “DTCO Configuration” App allows to change parameters and thereby aligning the functions more closely to the user’s requirements such as the local time or the activity after ignition off.
Highlights at a glance …
Up to 300 % faster driver specific vehicle settings after card insertion
Up to 25 % faster card reading & local download
Local download now nearly twice as fast
Up to 30 % faster card ejection
Up to 50 % reduced power consumption in stand-by mode
More than 50 % weight reduction
And even more driver benefits!
Faster VDO Counter information
Enhanced illumination
Easy to read display even after ‘ignition off’
Comfortable DTCO handling through VDO apps for driver
|
|
|
|
|
|
|
New digital tachograph DTCO
2.1
"Active"
Efficient, secure and
reliable
|
|
|
|
More efficiency for your fleet with the new DTCO® 2.1 active
Intelligent help during work day: The new DTCO® 2.1 active ease the life of fleet operators as well as drivers. The addition ‘active’ indicates that the functions “VDO Counter” and “DTCO® Geoloc” are activated. In addition to approved functions VDO has integrated extensive innovations, which supports you at saving costs, optimize routes and use working time more effective. The DTCO® 2.1 active is the first EC control device on the market, which has integrated a recording of GPS vehicle positions.
The most important innovations at a
glance:
More transparency: DTCO® 2.1 active’ with DTCO® GeoLoc functionality
In addition to the so-called trip the 'DTCO® 2.1 active also records the position of each start/stop (> 1 Minute). This recording function can of course be switched off or on by the driver at any time and therefore it can be used on a voluntary basis. In short time there will be a service in TIS-Web® , with it the user is able to display and evaluate the trips easily inside the TIS-Web® Portal.
More overview: The VDO Counter
The integrated VDO Counter offers the driver by request a quick overview about his current driving and rest times. So it supports by daily planing of routes and driving and rest times.
More effective Driving Time: The 1 Minute Rule
Use consequently the benefits from the 1 Minute Rule. Save precious minutes in distribution operation, in traffic jams or turnover on resting places and extent the driving time.
More comfort: The Remote Download
The legal download of driver card and mass memory data will be done complete automatically via GPRS or WLAN, without inserted company card inside the vehicle.
More future: ITS ready
Intelligent Transportation Systems (ITS) ensures the future mobility of our vehicles. ITS interconnects drivers, fleets and other traffic, providing efficient, safe and economic transport of goods and people. The DTCO® 2.1 active already incorporates ITS functionality and is therefore the perfect device for future fleet management.
More protection: Tampering
The DTCO® 2.1 active uses beside the speed signal a second independent motion signal (IMS). Beyond that it recognises and corrects via the new speed sensor (KITAS II+) external interferences and so its protects the interface between vehicle and signal sender against manipulations.
|
|
|
New digital tachograph DTCO 2.0
Efficient, secure and
reliable
|
|
|
|
More efficiency for your fleet with the new DTCO® 2.0
Intelligent help during work day: The new DTCO® 2.0 ease the life of fleet operators as well as drivers. In addition to approved functions VDO has integrated extensive innovations, which supports you at saving cots, optimise routes and use working time more effective.
The most important innovations at a
glance:
More Overview: The VDO Counter
Intelligent help instead of chore fullfillment: What has the driver to be noted and calculed so far, the DCTO® 2.0 will do this with its optional function VDO Counter complete automatically.
Current driving and rest time always in sight
The VDO Counter calculates the remaining driving and rest time in real time and displays it directly inside the DTCO® 2.0 screen. The driver sees, how long he is allowed steer his vehicle and when the next rest time in which length is necessary.
Your benefits
Stay flexible: Drivers can plan routes and stopps in an more optimal way can react quick on traffic changes, when they know their current driving and rest times.
Avoid fines: The legal prescribed driving and rest times can be kept without problem with help of the VDO Counter.
Sensible use of valuable working time: The laboroius note of activities by hand is no longer needed and the time can be used for other tasks.
Optimise ressource planning: You can access on the VDO Counter information from external. You know at any time, how much driving time your drivers have still available and so you can plan correspondingly (the current moment, the day shift, the week and double week).
More effective Driving Time: The 1 Minute Rule
Use consequently the benefits from the 1 Minute Rule. Save withit precious minutes in distribution operation, in traffic jams or turnover on resting places and extent the driving time.
With the new DTCO® 2.0 you benefit from the company friendly „1 Minute Rule“. You save valuable minutes e.g. at distribution operations, during traffic jams, at customs clearance or when maneuvering at the loading dock. It provides you with more relaxed operational procedures and makes your fleet more competitive.
What contains the „1 Minute Rule“?
According (EU) 1266/2009 a tachograph minute will only recorded as driving time at the DTCO® 2.0, when it is the longest activity inside this minute. You can find the complete regulation here:
„The 1 Minute Rule is a blessing for the branche.“
Michael Effinger, CEO of Spedition Effinger, reports from pratice: „The 1 Minute Rule is a blessing for the branche.“ Because you can roll on the parking spot a few meters, without interrupt your break or you can unscrupulously evacuate the ramp after unloading, companies will gain valuable time. However his 30 trucks are mainly on the road for construction and car industry purposes and not for regional traffic in Stop-and-Go-Operation, have been coming at him tidy sum.
Clever calculators can identify those likely to profit in the balance sheet, and in special big fleets you can save with it purely mathematical some vehicle. Although Effinger won't go so far. „But the time gained tremendously relaxing effect on the overall operation.“It again a little more game comes in the vehicle scheduling. „We do not get so close approach our limits, have rarely hold their breath and not push every now and then one eye.“
More comfort: The Remote Download
The legal download of driver card and mass memory data will be done complete automatically via GPRS or WLAN, without inserted company card inside the vehicle.
No cable, no stress: Wireless data transmission
The legal download of driver card and mass memory can be done with the optional available VDO Download Device (DLD®) complete automatically from any location. Simple via GPRS, without inserted company card in vehicle.
More about Download Devices
More comfort, less effort
The fleetmanager start the data transmission directly on his PC in the office. Driver and vehicle data are read out according legal download deadline, transferred directly into Archiv and available with immediate effect – this increase administration costs significantly.
In the past remote data access during operation was only possible direct inside the vehicle. With the DTCO® 2.0 the fleetmanager is able to read out the storage when the vehicle stands and include the current information in his plannings. For that the driver neither must interrupt his break nor night's sleep.
More Future: ITS ready
In the traffic of tommorrow, driver, fleets and other traffic participants will be connected by electronics. The DTCO® 2.0 is ready for this by today, as it offers first services and a safe basis for future fleetmanagement.
Ready for traffic of the future: ITS ready
Intelligent Transportation Systems (ITS) ensure the mobility of the future: The traffic of tommorrow will electronical connect driver, fleet, and other traffic participants. Only then it can work furthermore efficient, safe and economical. The DTCO® 2.0 is ready for this by today, as it offers first services and it is a secure basis for the fleetmanagement of the future.
Welcome in the world of Apps
The optional accessoiries DTCO® SmartLink (available in short time) connects the DTCO® 2.0 with your Smartphone and so it is the door opener for a lot of helpful Apps. Use your Smartphone in a new way!
More protection: Tampering
The DTCO® 2.0 uses beside the speed signal a second independent motion signal (IMS). Beyond that it recognises and corrects via the new speed sensor(KITAS II+) external interferences and so its protects the interface between vehicle and signal sender against manipulations.
|
|
|
Digital tachograph VDO DTCO 1381 Rel. 1.4: the best digital control device
Vdo dtco 1381 the best digital tachographs chosen by vehicle manufacturers.
|
|
The newest changes of legal regulations for usage of tachographs in the European Union come into effect from October 2011. The main focus of the legal changes on working out of the main issues, which users in this brand are confronted with.
The following applies for 1 calendar minute: The activity (DRIVING, WORK, AVAILABILITY or REST) shall be regarded as the longest continuous activity within the minute (or the latest of equally long activities).
Given a calendar minute, if DRIVING is registered as the activity of both the immediately preceding and immediately succeeding minute, the whole minute shall be regarded as DRIVING.
Due to the fact of further tasks the possibility is there, among other things 255 company specific data locks instead of existing 20, that the VRN in the operation mode "Company" has to be entered once and improved processes of manual entries most of the transportation agencies will appreciate the new legislation.
This latest version of our DTCO® 1381 digital tachograph combines efficiency-boosting functions and legal compliance with the compulsory change in Regulation (EU) No. 1266/2009, which comes into force in October 2011.
The relevant changes of DTCO® Release 1.4 from VDO are:
• Fast download using VDO DownloadKey II and TIS-Compact III products
• Driver card downloading without the need for a company card
• New, easier-to-use manual entries
• Recording and printing of speed/rpm profiles
• New pictograms and symbols
• Support for six new languages
Together with VDO DLD (GPRS) control unit and TIS- Web software management, DTCO® 1381 Vers. 1.4 also offers:
• Remote data download with DLD® - Remote Download
• Vehicles tracking with DLD® and TIS-Web® - TIS Track & Trace
Immediately inform your customers about the news of VDO digital tachograph DTCO ® 1.4 and offer them the opportunity to join
our new campaign "Go for Efficiency - The investment that pays for itself", which will start shortly because ... "Each
minute counts! "
|
|
DIGITAL TACHOGRAPHS MODELS |
| ALEXANDER
DENNIS |
|
| 1381-1051000019 |
DTCO 24V 2CAN120 OR/A2 ALEXANDER
DENNIS |
| DAF |
|
| 1381-2051100009 |
DTCO 24V-ADR 2CAN120 WD1/D2 - 1.3a
- DAF - LF, CF, XF |
| DENNIS EAGLE |
|
| 1381-1010100021 |
DTCO 24V 2CAN120 YE/A2 DENNIS
EAGLE |
| MERCEDES - EVOBUS |
|
| 1381-0010000026 |
DTCO 12V CAN500KBD D1/D2 YE/C - MB
- SPRINTER |
| 1381-1070000055 |
DTCO 24V 2CAN120
D1/D2 GN/A2R - MB - VARIO |
| 1381-2070000063 |
DTCO 24V-ADR
2CAN120 W/D1/D2 V/N GN/C - MB - ACTROS, ATEGO, AXOR |
| 1381-1070100036 |
DTCO 24V 2CAN120
W/D1/D2 V/N - EVOBUS - SETRA, MB |
| FORD |
|
| 1381-0070300018 |
DTCO 12V GN/A2 - FORD V347/8 |
| 1381-0070300017 |
DTCO 12V GN/A2R -
FORD V347/8 |
| HINO |
|
| 1381-1060000010 |
DTCO 24V 2CAN120 GN/A2R - HINO |
| ISUZU |
|
| 1381-0050200001 |
DTCO 12V CAN120 OR/A2 - ISUZU -
NQR, NPR |
| 1381-1050200002 |
DTCO 24V 2CAN120
OR/A2 - ISUZU - NQR, NPR |
| IVECO - IRISBUS |
|
| 1381-0071000008 |
DTCO 12V K-LINE 14229GN - IVECO
DAILY S2000 |
| 1381-0111100014 |
DTCO 12V 2CAN OR/C
- IVECO DAILY (DOPO 2006) |
| 1381-2072100009 |
DTCO 24V-ADR
2CAN120 GN/A2 - IVECO - STRALIS, EUROC., TRACKER, IRISBUS |
| MAN |
|
| 1381-2051000006 |
DTCO 24V-ADR 2CAN120 D1/D2 V/N
OR/C - MAN - TGA, TGL, TGM, L/M2000, NEOPLAN |
| RENAULT - NISSAN |
|
| 1381-0081000011 |
DTCO 12V OR/A2 - NISSAN - ATLAS,
CABSTAR |
| RENAULT - RVI |
|
| 1381-2052300019 |
DTCO 24V-ADR 2CAN D1/D2 V/N OR/C -
RVI - GAMMA COMPLETA (DA EURO 4) |
| 1381-2052300023 |
DTCO 24V-ADR 2CAN
D1/D2 V/N OR/C - RVI - GAMMA COMPLETA (FINO EURO 3) |
| SCANIA |
|
| 1381-2071400006 |
DTCO 24V-ADR 2CAN120 D1/D2 V/N
GN/C - SCANIA - GAMMA COMPLETA |
| SOLARIS BUS |
|
| 1381-1070100038 |
DTCO 24V 2CAN120 KL14229 D1D2 V/N
GN/C SOLARIS BUS |
| SOR LIBCHAVY (BUS CZ) |
|
| 1381-1070000057 |
DTCO 24V 2CAN120 KL14229 GN - SOR |
| VANHOOL |
|
| 1381-1070000058 |
DTCO 24V 2CAN120 GN/A2 - VANHOOL |
| VOLVO |
|
| 1381-2012300008 |
DTCO 24V-ADR 2CAN120 YE/C - VOLVO
- FE,FL (2006) |
| 1381-2012000017 |
DTCO 24V-ADR
2CAN120 YE/C - VOLVO - FM, FH |
| VW |
|
| 1381-0120000018 |
DTCO 12V CAN500KBD D1/D2 RD/C - WW
- CRAFTER |
| VDO - RETROFIT |
|
| 1381-0050200001 |
DTCO 12V CAN120 OR/A2 - VDO -
RETROFIT (SENZA CONTROLLO VIA CAN) |
| 1381-3050200001 |
DTCO 12V-ADR
2CAN120 D1/D2 OR/A2 - VDO - RETROFIT (SENZA CONTROLLO VIA CAN) |
| 1381-1050200002 |
DTCO 24V 2CAN120
OR/A2 - VDO - RETROFIT (SENZA CONTROLLO VIA CAN) |
| VDO - UNIVERSALE |
|
| 1381-1090200002 |
DTCO 24V 2CAN OR/A2 - VDO (SENZA
CONTROLLO VIA CAN) |
| 1381-2050300002 |
DTCO 24V-ADR
2CAN120 W/D1/D2 V/N OR/A2 - VDO (SENZA CONTROLLO VIA CAN) |
|
|
| DTCO EXCHANGE PROGRAM
1381 (VER. 1.4) |
|
|
| DAF |
|
| 1381/2051100009T |
DTCO 24V-ADR 2CAN120 WD1/D2 - DAF
- LF, CF, XF |
| MERCEDES - EVOBUS |
|
| 1381/1070100036T |
DTCO 24V 2CAN120 W/D1/D2 V/N -
EVOBUS - SETRA, MB |
| 1381/0010000026T |
DTCO 12V CAN500KBD
YE/C - MB - SPRINTER |
| 1381/2070000063T |
DTCO 24V-ADR
2CAN120 W/D1/D2 V/N GN/C - MB - ACTROS, ATEGO, AXOR |
| IVECO |
|
| 1381/0111100014T |
DTCO 12V 2CAN OR/C - IVECO - DAILY
(DOPO 2006) |
| 1381/2072100009T |
DTCO 24V-ADR
2CAN120 GN/A2 - IVECO - STRALIS, EUROC., TRACKER, IRISBUS |
| MAN |
|
| 1381/2051000006T |
DTCO 24V-ADR 2CAN120 D1/D2 V/N
OR/C - MAN - TGA, TGL, TGM, L/M2000, NEOPLAN |
| RENAULT - RVI |
|
| 1381/2052300019T |
DTCO 24V-ADR 2CAN D1/D2 V/N OR/C -
RVI - GAMMA COMPLETA (DA EURO 4) |
| SCANIA |
|
| 1381/2071400006T |
DTCO 24V-ADR 2CAN120 D1/D2 V/N
GN/C - SCANIA - GAMMA COMPLETA |
| VOLVO |
|
| 1381/2012000017T |
DTCO 24V-ADR 2CAN120 YE/C - VOLVO
- FM, FH |
| VW |
|
| 1381-0120000018T |
DTCO 12V CAN500KBD D1/D2 RD/C - WW
- CRAFTER |
| VDO - UNIVERSALE |
|
| 1381/1090200002T |
DTCO 24V 2CAN OR/A2 - VDO (SENZA
CONTROLLO VIA CAN) |
| 1381/2050300002T |
DTCO 24V-ADR
2CAN120 OR/A2 D1/D2 V/N- VDO (SENZA CONTROLLO VIA CAN) |
|
|
|
|
|
|
|
|
|
|
