TELEMATICS & REMOTE DOWNLOAD

Fleet Manager
Powered by VDO

Fleet Manager is a secure system for Fleet Management, which allows traffic operators to manage their drivers and vehicles efficiently.

Fleet Manager system, due to its versatility, allows the management and monitoring for a wide range of vehicles (cars, trucks, construction equipment, light trucks, etc..).

Fleet Manager uses on the vehicle the powerful on-board device FM 3306/3316, equipped with a high number of interfaces with the vehicle and able to communicate via GPRS with the FM-WEB operations center.

FM 3306/3316

The FM 3306 (without backup battery) and FM 3316 (with backup battery), collectively referred to herein as the FM 3316, is the ideal on-board computer for the management of vehicle and driver performance, driver safety and vehicle utilization.

The on-board computer enables the fleet manager to remotely monitor the performance of a vehicle. The FM 3316 on-board computer interfaces directly with the vehicle's data supporting the CAN - J1939 and J1708 - J1587 standards.

Features:
Recording information from the vehicle's data bus has several benefits over the traditional way of recording vehicle data. Where data is available up to 20 parameters may be monitored in real-time, installation of the unit does not require the connection of expensive 3rd party sensors, installation is quicker, more robust and the recorded data is more accurate.

Technical specifications
Rated voltage 12/24 V c.c.
Operating voltage 9 ... 33 V
Power consumption <20 mA (in standby)
Operating temperature from -20 to +70 °C
Storage temperature from -20 to +70 °C
Relative humidity Max 95%
Clock module RTC (real time clock)
Backup battery Lithium Battery
Memory 1 MB EPROM (for travels, tachometer data, operating data and drivers devices)
Warning device Cicalino (built-in wiring)
Interface I2C per il collegamento alla presa del veicolo
Size 100 x 85 x 34 mm
Approximate weight 535 g
Protection class IP54

Digital/analog inputs
digital/analog inputs 8
Switching voltage 0-5 V (risoluzione 20 mV) (programmabile) 0-38 V (risoluzione 150 mV)
Frequency Max 1 Hz
Auxiliary relay signal 1
Device power consumption Max 200 mA
Power interruption relay signal 1
Maximum continuous power Max 250 mA
Serial interface 1 porta RS232 e 1 porta TTL (la seconda porta RS232 si collega al modem interno GSM)

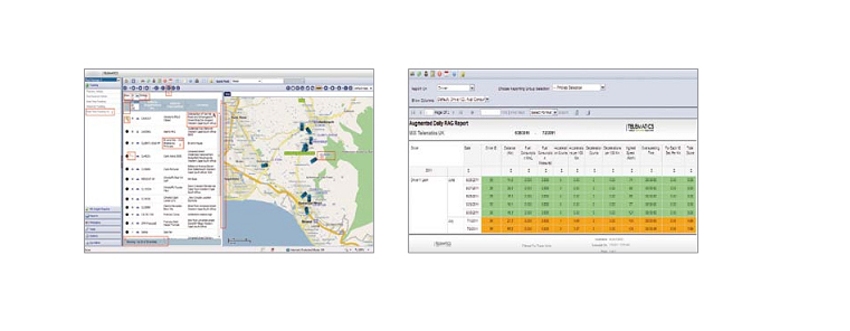

FM WEB

Fleet managers can now get an even better overview. With FM-Web, VDO can provide a connection between drivers and head office over the Internet. In addition to providing functions like tracking or communication, the program also analyses the vehicle data stored in the VDO FM 200 Plus onboard computer. The web-based system is no longer fixed to software based in the office, but can now be used from any PC that has a connection to the Internet.

The greatest advantage of the FM-Web Internet solution is its permanent availability. Even on business trips or on vacation, fleet managers can access this communications network from any Internet-enabled PC. They do not even need to worry about installing or maintaining software. At the same time, costs will be easier to forecast, thanks to a monthly fee rather than high start-up investment costs.

The core of the system is the onboard computer VDO FM 200 Plus. It provides the interface to the vehicle's electronic systems, gathering all relevant operational data. The onboard computer automatically transmits this data via GSM at regular intervals to the central computer, which then makes it available through the Internet. Used in conjunction with a navigation system or GPS module, the system allows users to determine the position of the vehicles. So fleet managers can track their vehicles on maps displayed on the computer screen.
